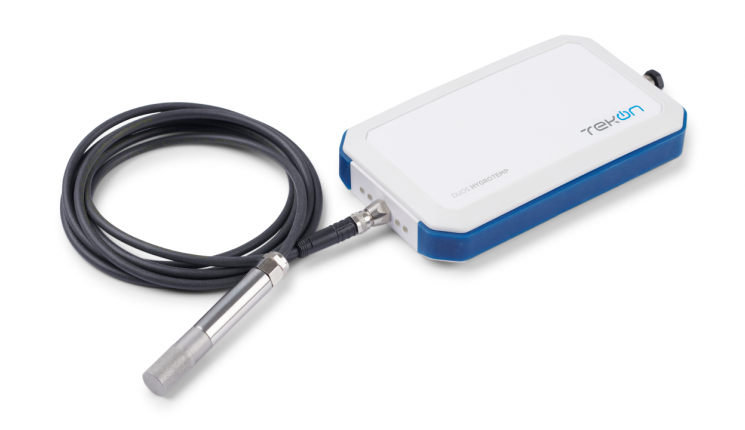

DUOS HYGROTEMP – Wireless Transmitter

Ref.: PA164520110 / PA164520120 / PA164520140 / PA164520130 / PA164520510

Dual probe: external temperature and humidity + internal temperature;
Up to 4 Km communication distance (LoS) with 128-bit AES encryption;
Multi-hop mesh network with self-forming, self-healing and self-optimizing features;
Battery voltage and wireless link quality (RSSI) monitoring;
Low power and long battery life;
Extreme operating temperature range -40ºC to 60ºC and IP65 protection;
Simple and intuitive USB configuration via Tekon Configurator (free software).

* external probe not included

Description

Radio specifications

	868MHz	915MHz
Range*	Up to 4 Km LoS, 27 dBm (500mW)
Radio Transmit Power	0 to 27 dBm	8 to 27 dBm
Radio Receiver Sensivity	-97 to -110 dBm
Frequency	868 to 869 MHz	902 to 928 MHz
Radio Channels	16	50
Encryption method	AES 128 (Advanced Encryption Standard)

*Range depends on the environment and line of sight. Always verify your wireless network’s range by performing a Site Survey.

Wireless Network
Maximum Devices (per gateway)	55
Communication Period	1 to 43200 seconds (configurable)

Internal Temperature

External Temperature and Humidity

*Data related to the TK07-PFT5 Probe

Supply Voltage
3×1,5V AA lithium/alkaline/Ni-MH (rechargeable) batteries

Protection Index
IP67
