Description

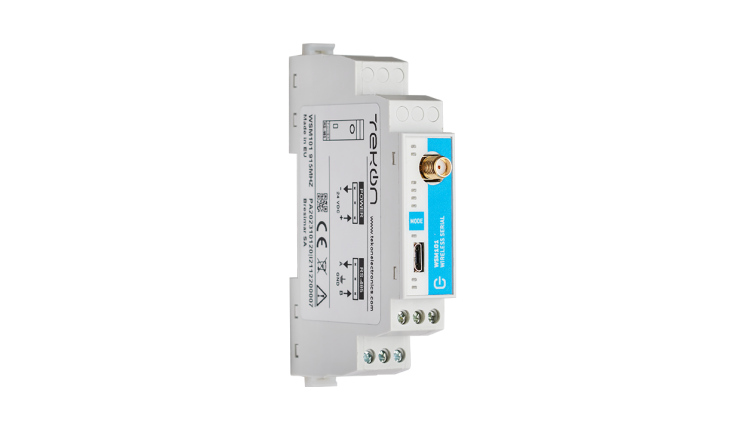

Convert physical connections to serial data transmission into wireless connections, in an easily and quickly way!
- Benefit from the advantages of wireless connections for serial data transmission via the RS485 interface.
- Reduce installation and maintenance costs by eliminating cables and simplifying serial data transmission on point-to-point or master-to-slave architectures.
- Easy installation and configuration.
| Radio Specifications |
|
868MHz |
915MHz |
| Range* |
Up to 4 Km (LoS) |
| Radio Transmit Power |
25 to 27 dBm |
27 dBm |
| Radio Receiver Sensivity |
-99 to -104 dBm |
| Frequency |
868,05 to 869,95 MHz |
902,50 to 927,00 MHz |
| Radio Channels |
16 |
50 |
| Encryption method |
AES 128 (Advanced Encryption Standard) |
| *Range depends on the environment and line of sight. Always verify your wireless network’s range by performing a Site Survey. |
|
|
| Serial Interface |
| Type of serial port |
RS485 |
| Baudrate |
4800, 9600, 14400, 19200, 38400, 57600 or 115200 |
| Stop bits |
One, Two |
| Parity |
None, Even, Odd |
| Power Supply |
| Supply Voltage |
5 to 24V DC ± 5% USB |
| Operating Environment |
| Operating Temperature |
-20 ºC to 80 ºC |
