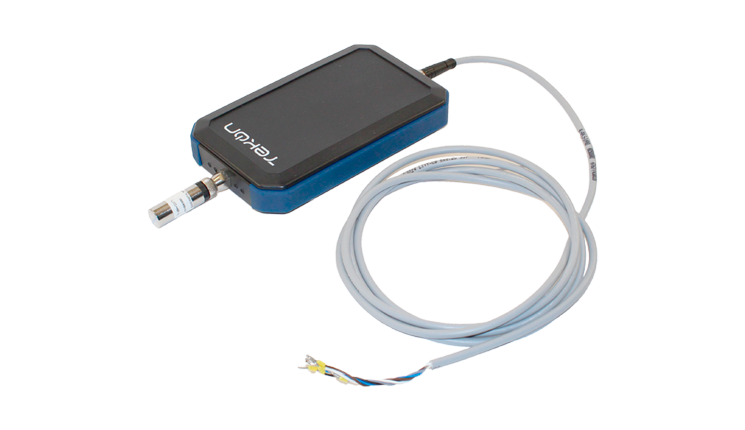

DUOS DI+TEMP – Wireless Transmitter

Ref.: PA160411210 / PA160411220 / PA160411230 / PA160411240 / PA160412510

Dual temperature probe: internal and external;
External digital input for event detection;
Up to 4 Km communication distance (LoS) with 128-bit AES encryption;
Multi-hop mesh network with self-forming, self-healing and self-optimizing features;
Battery voltage and wireless link quality (RSSI) monitoring;
Low power and long battery life;
Extreme operating temperature range -40ºC to 60ºC and IP65 protection;
Simple and intuitive USB configuration via Tekon Configurator (free software).

* external probe not included

Descriere

Radio Specifications

	868MHz	915MHz
Range*	Up to 4 Km LoS, 27 dBm (500mW)
Radio Transmit Power	0 to 27 dBm	8 to 27 dBm
Radio Receiver Sensivity	-97 to -110 dBm
Frequency	868 to 869 MHz	902 to 928 MHz
Radio Channels	16	50
Encryption method	AES 128 (Advanced Encryption Standard)

*Range depends on the environment and line of sight. Always verify your wireless network’s range by performing a Site Survey.

Wireless Network
Maximum Devices (per gateway)	55
Communication Period	1 to 43200 seconds (configurable)

Internal Temperature

Digital Input
Contact Type	Dry contact

Supply Voltage
3×1,5V AA lithium/alkaline/Ni-MH(rechargeable) batteries

Protection Index
IP67
