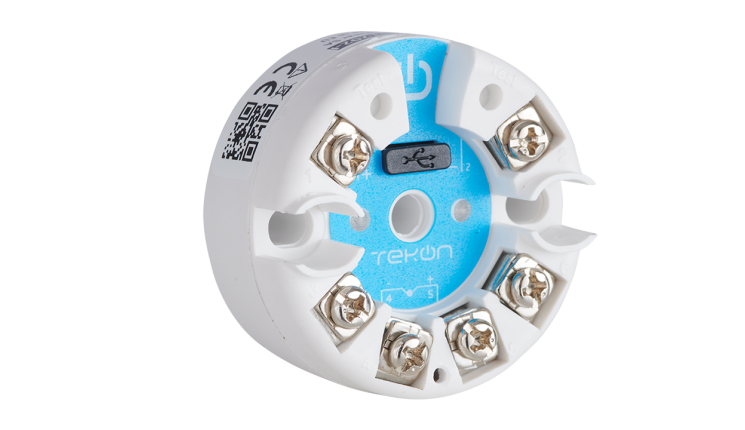

THT202-I - THERMOCOUPLE ISOLATED TEMPERATURE HEAD TRANSMITTER - imagine 2

THT202-I – THERMOCOUPLE ISOLATED TEMPERATURE HEAD TRANSMITTER

Ref.: PA183120210

Galvanic Isolation 1,5kV AC
Thermocouple Sensor Input (J,K,N,R,S,T)
Wide Measurement Range
4 to 20 mA Analog Output
2 Status LEDs
High Measurement Accuracy
High EMC Performance
NAMUR NE 43 Fault Compliant
Configurable over PC (Tekon Configurator Software)

Categorii: In head, Transmițătoare cu fir

Descriere

Input
Sensor type	Thermocouples (J, K, N, R, S, T)
Open-circuit monitoring	Always active ( cannot be disabled)
Cold junction compensation (CJC)	Integrated resistance thermometer

Output
Output Signal	4 to 20 mA
Power Supply (UAUX)	12 to 24 VDC
Max. Load	(Uaux-12) / 0,021 A
Sample cycle	<200ms
Protection	Against reversed polarity Surge Protection

Operating Environment
Ambient temperature range	-40 to 80ºC
