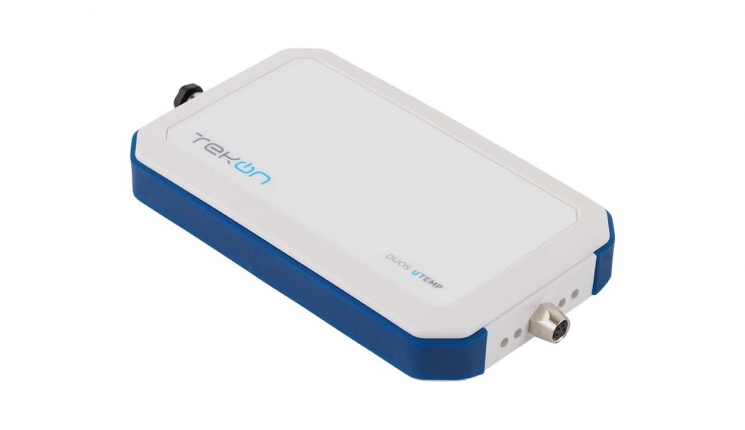

DUOS UTEMP - WIRELESS TRANSMITTER

DUOS UTEMP – WIRELESS TRANSMITTER

Ref.: PA210320120 / PA210320140

Multiple temperature inputs (RTD, Thermocouples, linear Ohm and linear mV)
Discrete digital input
Internal and external temperature
Up to 4 Km communication distance (LoS) with AES-128 bit encription
Battery voltage and signal strength (RSSI) monitoring
Low battery consumption and long battery life
IP65 protection index

Categorii: DUOS, Sisteme Wireless

Descriere

Radio Specifications

	868MHz	915MHz
Range*	Up to 4 Km LoS
Radio Transmit Power	0 to 27 dBm	8 to 27 dBm
Radio Receiver Sensivity	-97 to -110 dBm
Frequency	868 to 869 MHz	902 to 928 MHz
Radio Channels	16	50
Encryption method	AES 128 (Advanced Encryption Standard)

*Range depends on the environment and line of sight. Always verify your wireless network’s range by performing a Site Survey.

Wireless Network
Maximum Devices	55
Communication period	1 to 43200 seconds (configurable)

Input – RTD
Sensor type	PT100, PT500 and PT1000
Connection	1 resistance thermometer (RTD) in 2, 3 and 4-wire system
Units	ºC

Input – Thermocouple
Sensor type	C, J, K, N, R, S and T
Units	ºC

Input – Ohm
Measured variable	Resistance
Sensor type	Resistance, Potentiometers
Connection	2 wires

Input – mV
Measured variable	DC voltage
Sensor type	DC voltage source
Connection	2 wires
Units	mV

Digital Input
Contact type	Dry contact
Communication time after DI activation	< 1,1 seconds

Operating Environment
Temperature range	-40 to 60ºC
Humidity	95%
