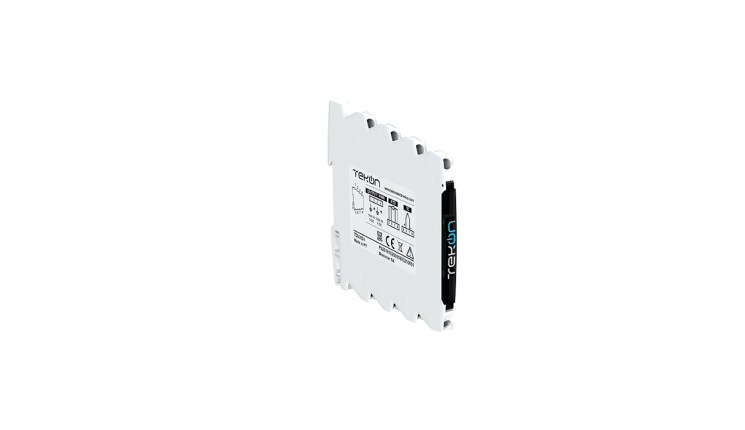

TDU302-I - VOLTAGE OUTPUT ISOLATED DIN RAIL TRANSMITTER

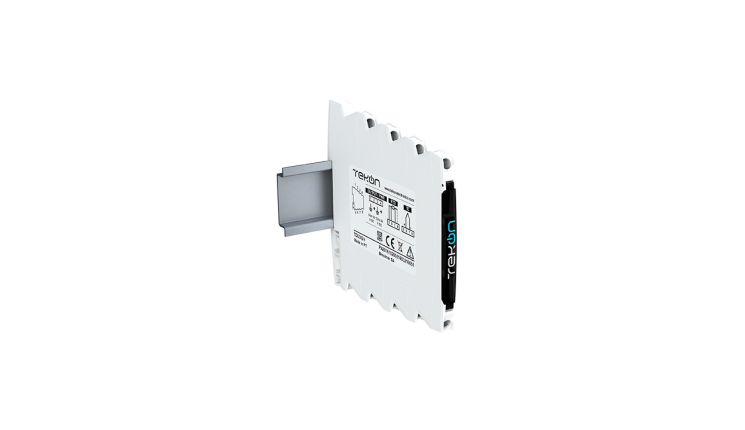

TDU302-I - VOLTAGE OUTPUT ISOLATED DIN RAIL TRANSMITTER - imagine 2

TDU302-I – VOLTAGE OUTPUT ISOLATED DIN RAIL TRANSMITTER

Ref.: PA201610200
  • RTD sensors input: PT100, PT500 and PT1000
  • Thermocouples sensors input: J, K, N, R, S and T
  • 1,5 kV AC galvanic isolation
  • 0 to 10V analog output
  • 2 status LEDs
Categorii: ,

Descriere

Input – RTD
Connection 1 resistance thermometer (RTD) in 2, 3 and 4-wire system
Sensor type PT100, PT500 and PT1000
Input – Thermocouple
Sensor type J, K, N, R, S and T
Output
Signal 0 to 10 V
Power Supply 12 to 24 V DC
Error signal 0 V or 11 V (configurable)
Common specifications
Isolation voltage 1,5 kV AC
Power-up time (Thermocouple) < 600 ms
Power-up time (RTD) < 1 ms
Operating Environment
-40ºC to 80ºC
Protection Index
IP40 (enclosure) / IP20 (terminals)
