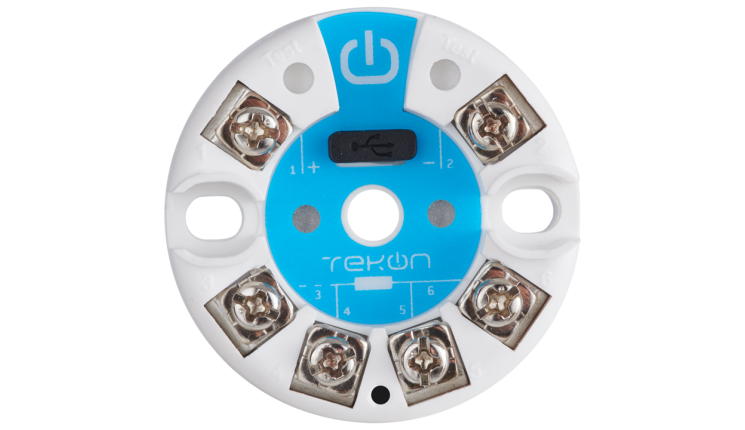

THP102-I - PT100 ISOLATED TEMPERATURE HEAD TRANSMITTER - imagine 2

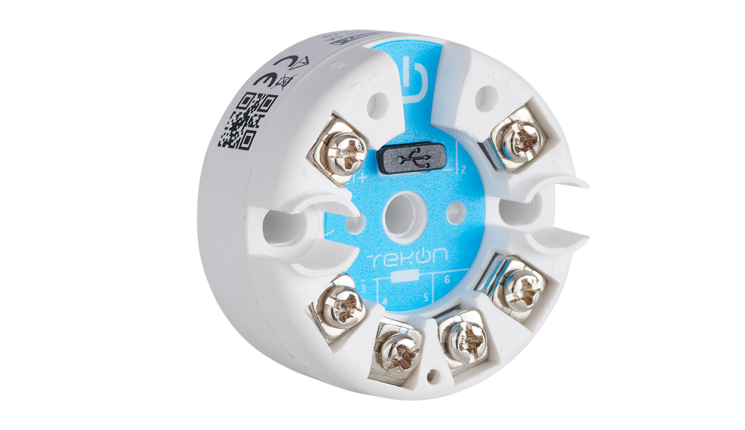

THP102-I – PT100 ISOLATED TEMPERATURE HEAD TRANSMITTER

Ref.: PA183120110

Galvanic Isolation 1,5kV AC
PT100 Sensor Input
4 to 20 mA Analog Output
2 Status LEDs
High Measurement Accuracy
High EMC Performance
NAMUR NE 43 Fault Compliant
Configurable over PC (Tekon Configurator Software)

Categorii: In head, Transmițătoare cu fir

Descriere

Input
Sensor type	PT100
Connection	1 Resistance Thermometer (RTD) in 3-wire system
Units	ºC
Sensor Current	200 μA

Output
Output Signal	4 to 20 mA
Power Supply (UAUX)	12 to 24 VDC
Max. Load	(Uaux – 12) / 0,021A
Sample cycle	<200ms
Protection	Against reversed polarity – Surge protection

Operating Environment
Ambient temperature range	-40ºC to 80ºC
