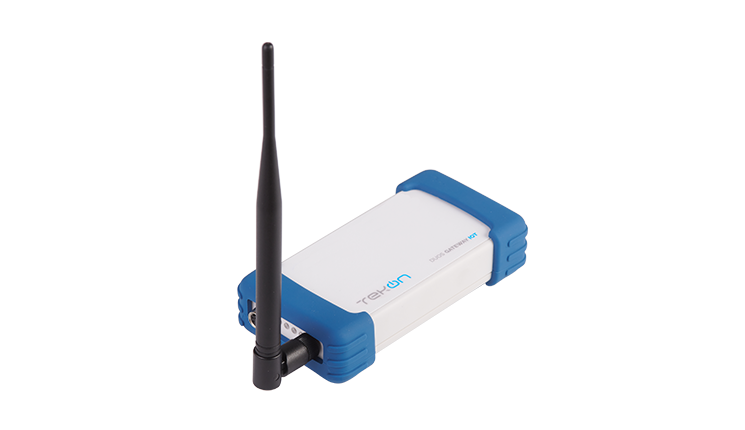

Duos Gateway IoT

Duos Gateway IoT

Ref.: PA160410240 / PA160410220 / PA160410260 / PA160410280

Ethernet TCP/IP Modbus Communication
Integration with Tekon IoT Platform
Scalable Network
Multiple Networks Simultaneously
Up to 4km or 2km distance (LoS)
Automatic Mesh Network Management
AES Key Data Encryption 128 Bits
Easy to configure

Categorii: DUOS, Sisteme Wireless

Descriere

Radio Specifications

	868MHz	915MHz
Range*	Up to 4 Km LoS, 27 dBm (500mW)	Up to 4 Km LoS, 27 dBm (500mW)
Radio Transmit Power	0 to 27 dBm	8 to 27 dBm
Radio Receiver Sensivity	-97 to -110 dBm	-97 to -110 dBm
Frequency	868 to 869 MHz	902 to 928 MHz
Radio Channels	16	50
Encryption method	AES 128 (Advanced Encryption Standard)

*Range depends on the environment and line of sight. Always verify your wireless network’s range by performing a Site Survey.

Wireless Network
Maximum Devices	55
Maximum Hops	13

Supply Voltage
External power supply with 12 VDC ±5%

Serial Communication (RS-485)
Protocol	Modbus RTU (Slave)
Interface	2-wire RS-485

Network Communication (Ethernet)
Protocol	TCP / IP Modbus RTU
Interface	Ethernet

IoT Connectivity
Tekon IoT Platform
REST API

Operating Environment
-10ºC to 60ºC

Protection index
IP40
