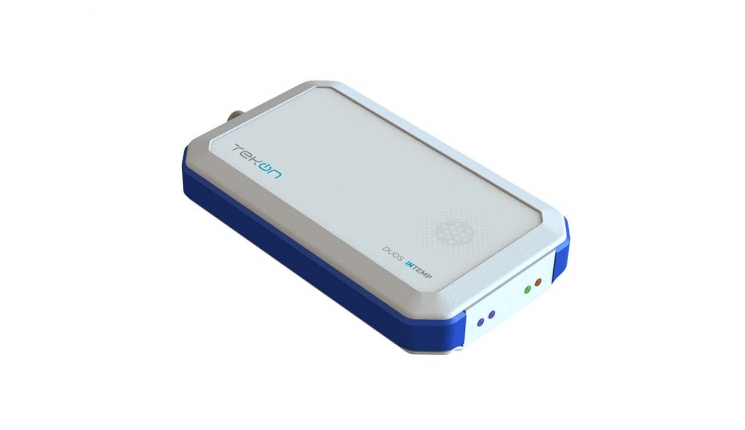

DUOS inTEMP – WIRELESS TRANSMITTER

Ref.: PA210310110 / PA210310120

Descriere

Radio Specifications

	868MHz	915MHz
Range*	Up to 4 Km LoS
Radio Transmit Power	0 to 27 dBm	8 to 27 dBm
Radio Receiver Sensivity	-97 to -110 dBm
Frequency	868 to 869 MHz	902 to 928 MHz
Radio Channels	16	50
Encryption method	AES 128 (Advanced Encryption Standard)

*Range depends on the environment and line of sight. Always verify your wireless network’s range by performing a Site Survey.

Wireless Network
Maximum Devices	55
Communication period	1 to 43200 segundos (configurable)

Temperature
Temperature range	-40ºC to 60ºC
Resolution	0,1 ºC

Digital Input
Sensor type	Dry contact
Edge trigger	Open \| Close

Operating Environment
Temperature range	-40ºC to 60ºC
Humidity	95%

Protection Index
IP65
