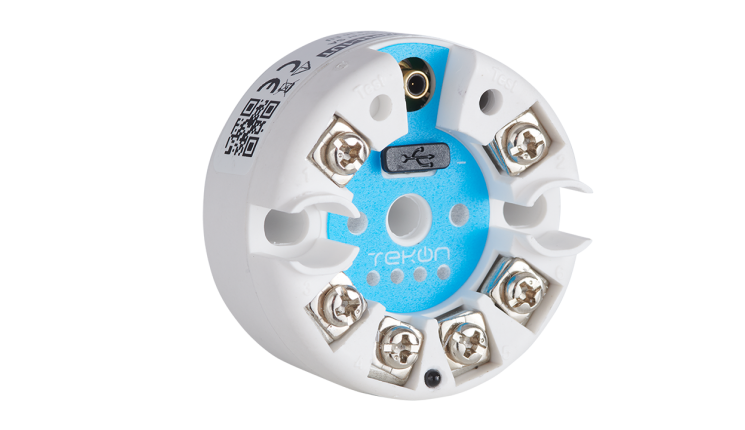

PLUS TWPH-1UT - Temperature Wireless Transmitter

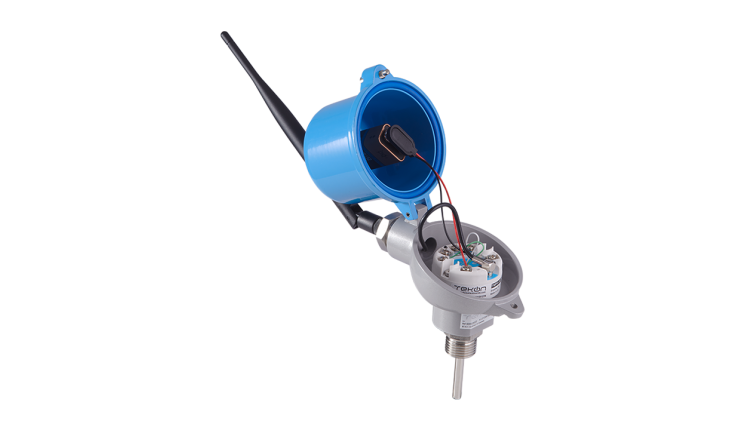

PLUS TWPH-1UT - Temperature Wireless Transmitter - imagine 2
PLUS TWPH-1UT - Temperature Wireless Transmitter - imagine 3
PLUS TWPH-1UT - Temperature Wireless Transmitter - imagine 4

PLUS TWPH-1UT – Temperature Wireless Transmitter

Ref.: PA164510510 / PA164510520
  • -40ºC to 80ºC
  • Up to 4km communication distance (LoS)
  • Universal Sensor Input
  • 6 Status Leds
  • Ultra low power mode
  • Multi-hop Mesh Network
  • Operating Mode: Transmitter and Repeater
  • Site Survey Feature
Categorii: ,

Descriere

Radio Specifications
868MHz 915MHz
Range* Up to 4 Km LoS Up to 4 Km LoS
Radio Transmit Power 25 to 27 dBm 8 to 27 dBm
Radio Receiver Sensivity -97 to -110 dBm
Frequency 868 to 869 MHz 902 to 928 MHz
Radio Channels 16 50
Encryption method AES 128 (Advanced Encryption Standard)
*Range depends on the environment and line of sight. Always verify your wireless network’s range by performing a Site Survey.
Input
Resistance Thermometer (RTD) Thermocouples (TC)
Sensor type PT100 C, J, K, N, R, S, T
Open-circuit monitoring Always active (cannot be disabled)
Short-circuit monitoring Always active (cannot be disabled) Not available
Wireless Network
Maximum Devices 55
Maximum Hops 13
Communication Period 1 to 43200 seconds (configurable)
Supply Voltage
Range 5 to 24V DC
Accuracy ±50mV
Operating Environment
Operating Temperature -40 to 80ºC
Digital Measuring Accuracy
Resistance Thermomether (RTD)
Sensor Range ºC Digital Accuracy ºC Resolution ºC
PT100 -210 to 850 ≤ ±0,2 0,05
Thermocouples (TC)
Sensor Range ºC Digital precision ºC   Resolution ºC
C 0 to 2300 ≤ ±1,0 0,400
J -210 to 1200 ≤ ±1,0 0,077
K -230 to 1370 ≤ ±1,0 0,098
N -270 to 1270 ≤ ±1,0 0,151
R -50 to 1760 ≤ ±1,2 0,189
S -50 to 1760 ≤ ±2,0 0,185
T -270 to 400 ≤ ±1,0 0,026
