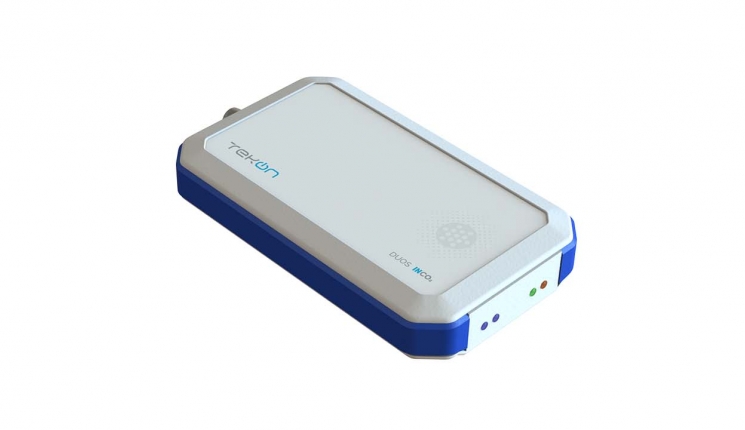

DUOS InCO2 - WIRELESS TRANSMITTER

DUOS InCO2 – WIRELESS TRANSMITTER

Ref.: PA210310310 / PA210310320

Built-in CO2 and temperature sensor
Temperature: -40ºC to 60ºC
CO2: 0 to 5000 PPM
Barometric pressure: 700 to 1100 mbar
Discrete digital input
Wireless signal monitoring
IP65 protection index

Categorii: DUOS, Sisteme Wireless

Descriere

Radio Specifications

	868MHz	915MHz
Range*	Up to 4 Km LoS
Radio Transmit Power	0 to 27 dBm	8 to 27 dBm
Radio Receiver Sensivity	-97 to -110 dBm
Frequency	868 to 869 MHz	902 to 928 MHz
Radio Channels	16	50
Encryption method	AES 128 (Advanced Encryption Standard)

*Range depends on the environment and line of sight. Always verify your wireless network’s range by performing a Site Survey.

Wireless Network
Maximum Devices (per gateway)	55
Communication period	1 to 43200 seconds (configurable)

Temperature
Range	-40ºC to 60ºC
Resolution	0,1 ºC

CO2
Range	0 to 5000 ppm
Sampling time	5 to 3600 seconds (configurable)
Response Time	75 seconds

Barometric Pressure
Range	700 to 1100 mbar
Accuracy	± 2 mbar (20 to 80% RH)

Digital Input
Contact type	Dry contact
Edge trigger	Open \| Close

Operating Environment
Operating Environment	-40ºC to 60ºC
Humidity	< 95%

Protection Index
IP65
