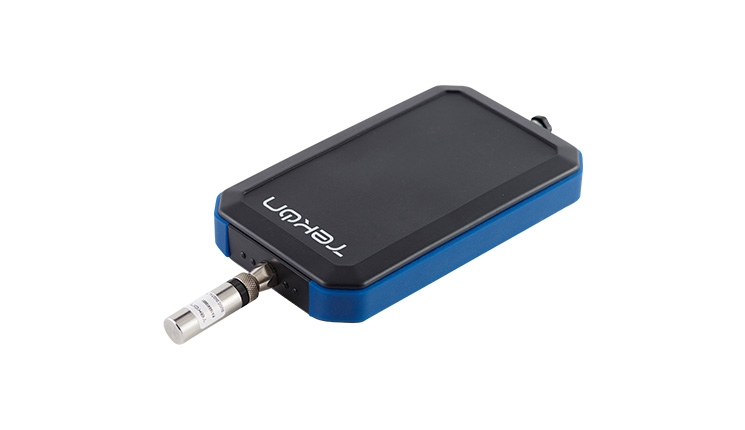

DUOS TEMP - Wireless Transmitter
DUOS TEMP - Wireless Transmitter - Image 2

DUOS TEMP – Wireless Transmitter

Ref.: PA160410110 / PA160410120 / PA160410130 / PA160410140 / PA160411810 / PA160411710 / PA160411720 / PA160411730 / PA160411740 / PA160412610
  • Temperature measurement sensor range*
  • Agrifood Industry compatibility
  • Compatible with Agrifood Industry Standards
  • Dual temperature probe
  • Internal and External probes
  • Wireless Link Strenght (RSSI)
  • Auto Discovery of the best wireless link
  • Low power and long battery life
  • Measuring and Transmitting battery voltage
  • Water Resistent
  • IP65 Protection
Categories: , ,

Description

Radio Specifications
868MHz 915MHz
Range* Up to 4 Km LoS, 27 dBm (500mW)
Radio Transmit Power  0 to 27 dBm  8 to 27 dBm
Radio Receiver Sensivity  -97 to -110 dBm  -97 to -110 dBm
Frequency  868 to 869 MHz  902 to 928 MHz
Radio Channels 16 50
Encryption method AES 128 (Advanced Encryption Standard)
*Range depends on the environment and line of sight. Always verify your wireless network’s range by performing a Site Survey.
Wireless Network
Maximum Devices (per gateway) 55
Communication Period 1 to 43200 seconds (configurable)
Temperature Measurement – Internal probe
868MHz 915MHz
Range -40 to 60ºC
Resolution 0,1 ºC
Accuracy Typical: ± 0.25ºC / Maximum ± 0.5ºC
Temperature Measurement – External probe
Range -40 to 125ºC
Resolution 0.1ºC
Accuracy Typical: ± 0.25ºC / Maximum ± 0.5ºC
Supply Voltage
3×1,5V AA lithium/alkaline/Ni-MH(rechargeable) batteries
Protection Index
IP67
