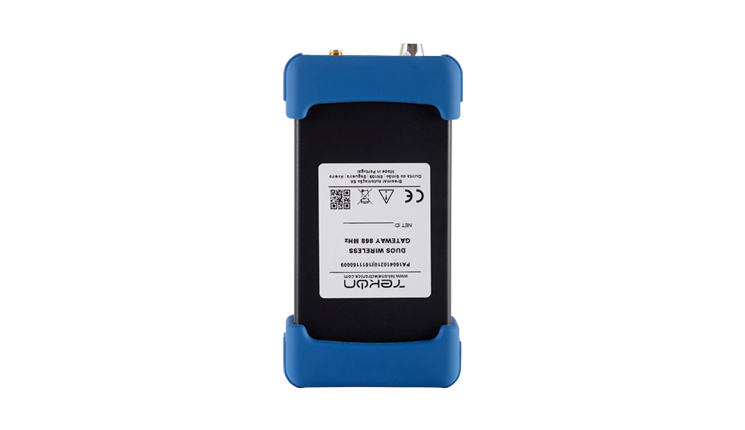

DUOS Wireless Gateway

Ref.: PA160410210 / PA160410230 / PA160410250 / PA160410270

Scalable network up to 55 DUOS transmitters;
Up to 4 Km communication distance (LoS) with 128-bit AES encryption;
Multiple networks simultaneously with extra gateways;
Multi-hop mesh network with self-forming, self-healing and self-optimizing features;
Modbus RTU communication protocol via RS-485 interface;
Simple and intuitive USB configuration via Tekon Configurator (free software).

Categories: DUOS, Wireless Systems

Description

Radio Specifications

	868MHz	915MHz
Range*	Up to 4 Km LoS, 27 dBm (500mW)
Radio Transmit Power	0 to 27 dBm	8 to 27 dBm
Radio Receiver Sensivity	-97 to -110 dBm
Frequency	868 to 869 MHz	902 to 928 MHz
Radio Channels	16	50
Encryption method	AES 128 (Advanced Encryption Standard)

*Range depends on the environment and line of sight. Always verify your wireless network’s range by performing a Site Survey.

Wireless Network
Maximum Devices	55
Maximum Hops	13

Supply Voltage
External power supply with 12 VDC ± 5%

Serial Communication (RS-485)
Protocol	Modbus RTU (Slave)
Interface	2-wire RS-485

Housing
Protection Index	IP40

Operating Conditions
-10ºC to +60ºC
