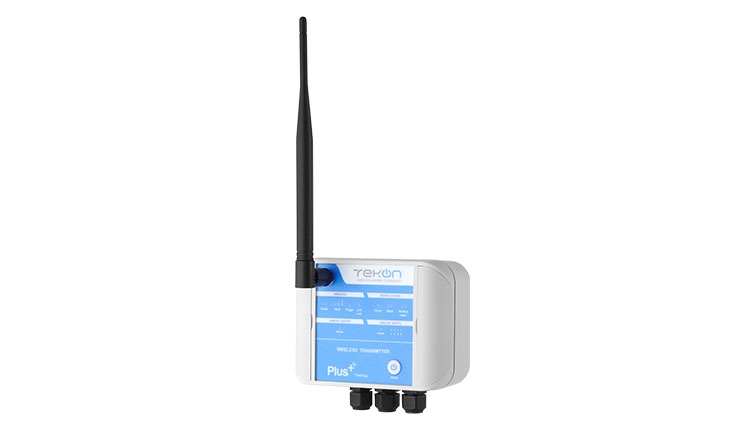

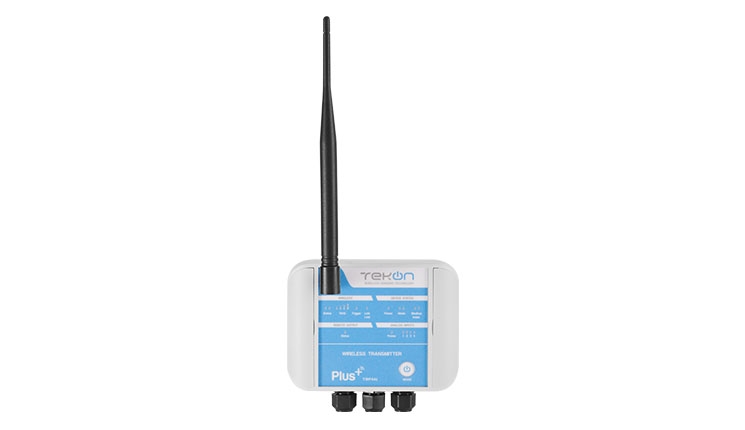

PLUS TWP4AI – Wireless Transmitter

Ref.: PA164510110 / PA164510120

4 configurable analog inputs (0..20 mA or 0..10 V) providing cable replacement features;
3 configurable digital outputs: generic, RF link lost indication and external power control;
Configurable communication period and/or event trigger via digital input;
Up to 4 Km communication distance (LoS) with 868 MHz and 128-bit AES encryption;
Multi-hop mesh network with self-forming, self-healing and self-optimizing features;
Internal temperature, battery voltage and wireless link quality (RSSI) monitoring;
Extreme operating temperature range -30ºC to 80ºC and IP65 protection;
Simple and intuitive USB configuration via Tekon Configurator (free software).

Description

Radio Specifications
Range	4Km LoS (2.5mi)
Frequency Band	868.050 a 869.950MHz
Encryption method	AES 128 (Advanced Encryption Standard)

Wireless Network
Maximum Devices (per gateway)	55
Communication Period	1 to 43200 seconds (configurable)

Digital Input – Trigger
Range	OV DC to Supply Voltage
Type	Sinking/NPN
Detection Type	State change
Activation Detection	Falling Edge / Rising Edge / Both¹ ^{1 Configurable}

Digital Output – Remote Output
Range	5 to 24V DC
Type	Sinking / NPN

HMI
Indication	Frontal Panel LED

Power Supply
External	5 to 24V DC ± 5%

Mechanical
Configuration Connection	Micro USB internal connector
Protection Index	IP65

Operating Conditions
Operating Temperature	-30 to 80ºC
