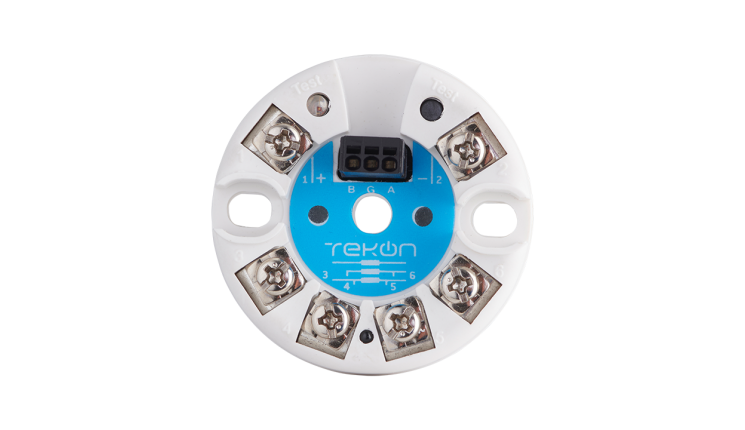

THM502-I - RTD AND OHM ISOLATED TEMPERATURE TRANSMITTER WITH MODBUS OUTPUT - imagine 2

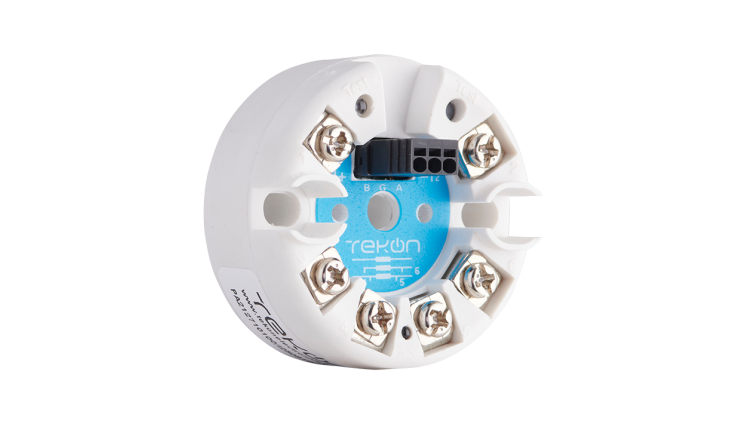

THM502-I – RTD AND OHM ISOLATED TEMPERATURE TRANSMITTER WITH MODBUS OUTPUT

Ref.: PA212710100

RTD (PT100, PT500, PT1000) and ohm sensor input
100 Modbus RTU slave addresses available
1,5 kV Galvanic isolation
High precision and accuracy with low operating temperature drift
Configurable via RS485 with Tekon Configurator free software

Categorii: In head, Transmițătoare cu fir

Descriere

Input – RTD
Sensor type	PT100, PT500, PT1000
Connection	1 resistance thermometer (RTD) in 2, 3 and 4-wire system
Measuring range	Configurable

Input – Ohm
Sensor type	Resistance, Potentiometers
Connection	2 wires
Measuring range	Not configurable

Output
Physical layer	RS485
Baudrates	4800, 9600, 19200, 38400, 56000, 57600, 115200 (configurable)
Response Time	< 100ms

Operating Temperature
-20ºC to 80ºC

Power Supply
5 to 24 V DC ± 10%

IP Protection
IP40
