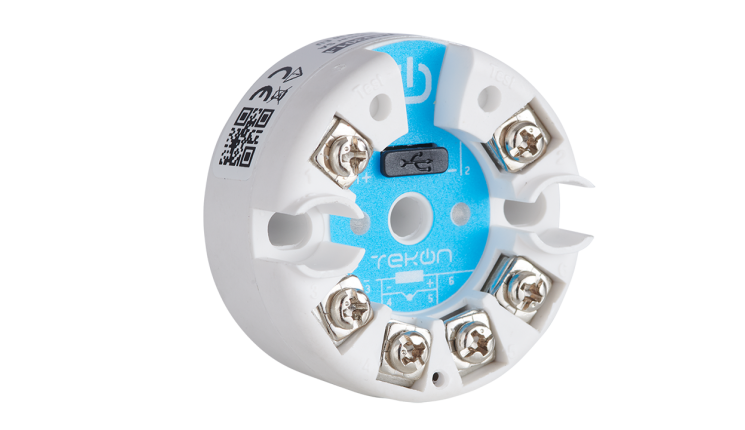

THU301-I - UNIVERSAL TEMPERATURE ISOLATED HEAD TRANSMITTER - imagine 2

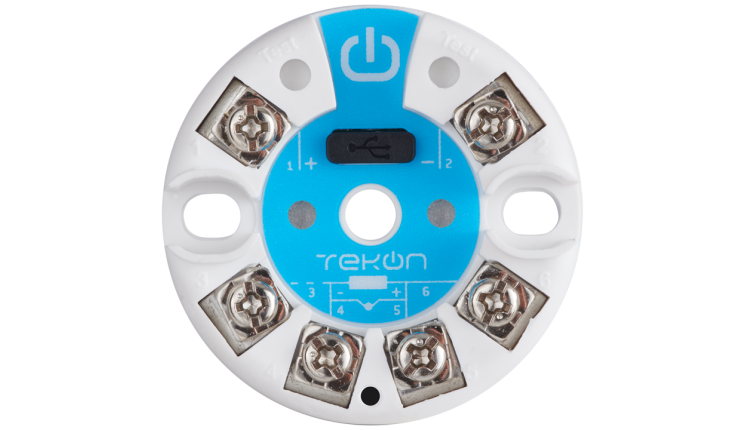

THU301-I – UNIVERSAL TEMPERATURE ISOLATED HEAD TRANSMITTER

Ref.: PA183120010

Galvanic Isolation 1,5kV AC
Universal Sensor Input (Thermocouple: J,K,N,R,S,T; PT100, PT500 and PT1000 RTD)
Wide Measurement Range
4 to 20 mA Analog Output
2 Status LEDs
High Measurement Accuracy
High EMC Performance
NAMUR NE 43 Fault Compliant
Configurable over PC (Tekon Configurator Software)

Categorii: In head, Transmițătoare cu fir

Descriere

Input – Thermocouple
Sensor type	Thermocouple (J, K, N, R, S, T)
Open-circuit monitoring	Always active (cannot be disable)
Cold junction compensation (CJC)	Integrated resistance thermometer

Input – RTD
Sensor type	PT100, PT500 and PT1000
Connection	1 Resistance Thermometer (RTD) in 2, 3 or 4-wire system
Units	ºC
Sensor current	200 µA

Output
Output signal	4 a 20 mA
Power Supply	12 to 24V DC
Max. Load	(Uaux – 12) / 0,021A
Sample cycle	< 200ms

Operating Environment
Temperature range	-40ºC to 80ºC
