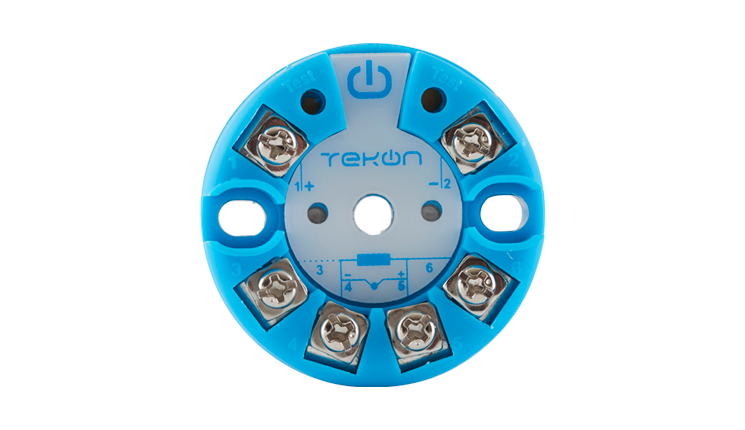

THP101 – PT100 Temperature Head Transmitter with 4..20 MA output

Ref.: PA132720110

PT100 sensor input;
High precision and accuracy with low operating temperature drift;
Status LED’s and test pads;
Configurable via Tekon Configurator free software;
NAMUR NE43 compliant for fault detection and signaling;
Sensor cable resistance and current output compensation;
Type DIN B connection head compatible.

Categorii: In head, Transmițătoare cu fir

Descriere

INPUT
Sensor type	PT 100
Connection	2, 3 and 4 wires
Response time	< 500 ms

Output
Output signal	4 to 20 mA

Operating Environment
-20 to 80ºC

Protection index
IP 40
