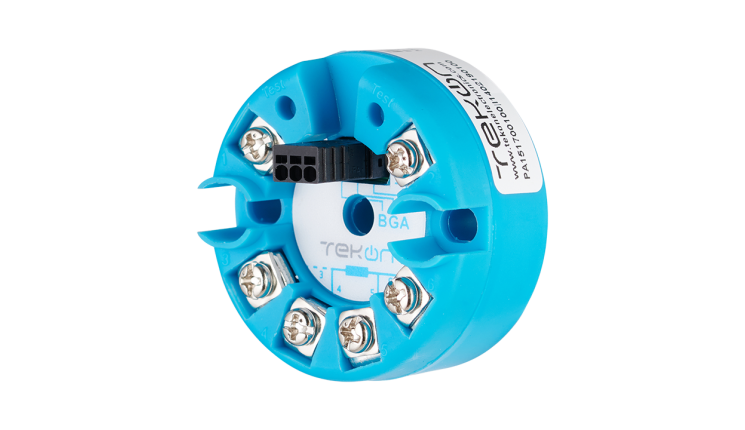

THM501 - PT100 Temperature Head Transmitter with Modbus RTU output
THM501 - PT100 Temperature Head Transmitter with Modbus RTU output - Image 2

THM501 – PT100 Temperature Head Transmitter with Modbus RTU output

Ref.: PA151700100
  • PT100 sensor input;
  • 100 Modbus RTU slave addresses available;
  • High precision and accuracy with low operating temperature drift;
  • Configurable via RS485 with Tekon Configurator free software;
  • Type DIN B connection head compatible.
Categories: ,

Description

Input
Measuring range -200ºC a 850ºC
Response time < 100ms
Connection 2, 3 and 4 wires
Sensor type RTD PT100
Output
Physical layer RS-485
Response time < 100 ms
Baud rates 4800, 9600, 19200, 38400, 56000, 57600, 115200
Measurement Accuracy
Warm up time < 5 min
Accuracy < 0,1ºC
Operating Environment
Temperature range -20ºC to 80ºC (-4ºF a 176ºF)
Casing
Protection index IP40
Power Supply
Power consumption < 0,3 W
Power Supply 12 to 24 V DC
