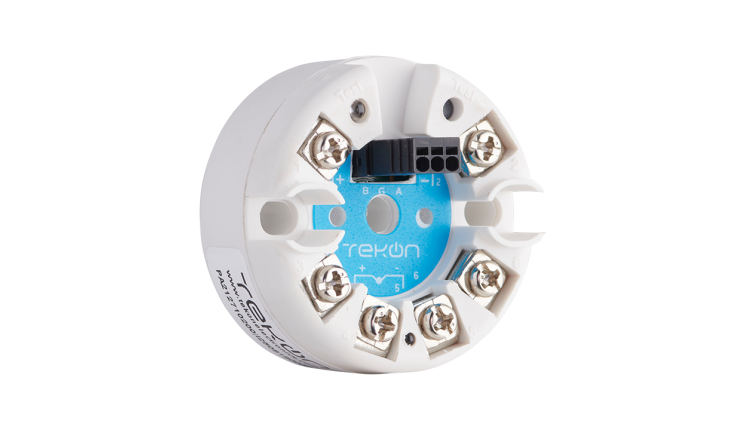

THM602-I - THERMOCOUPLE AND MV ISOLATED TEMPERATURE TRANSMITTER WITH MODBUS OUTPUT

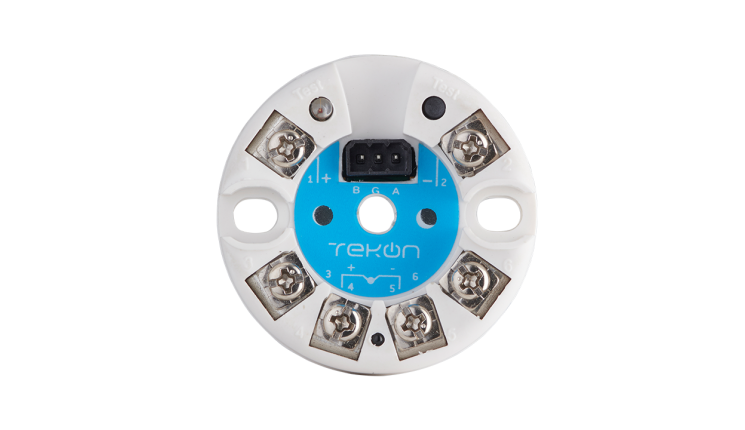

THM602-I - THERMOCOUPLE AND MV ISOLATED TEMPERATURE TRANSMITTER WITH MODBUS OUTPUT - Image 2

THM602-I – THERMOCOUPLE AND MV ISOLATED TEMPERATURE TRANSMITTER WITH MODBUS OUTPUT

Ref.: PA212710200

Thermocouple (C, J, K, N, R, S, T) and mV sensor input
100 Modbus RTU slave addresses available
1,5 kV Galvanic isolation
High precision and accuracy with low operating temperature drift
Configurable via RS485 with Tekon Configurator free software

Categories: In head, Wired Transmitters

Description

Input – Thermocouple
Sensor type	C, J, K, N, R, S, T
Connection	1 thermocouple
Measuring range	Configurable

Input – mV
Sensor type	DC voltage source
Connection	2 wires
Measuring range	Not configurable

Output
Physical layer	RS485
Baudrates	4800, 9600, 19200, 38400, 56000, 57600, 115200 (configurable)
Response Time	< 100ms

Operating Temperature
-20ºC to 80ºC

Power Supply
5 to 24 V DC ± 10%

IP Protection
IP40
