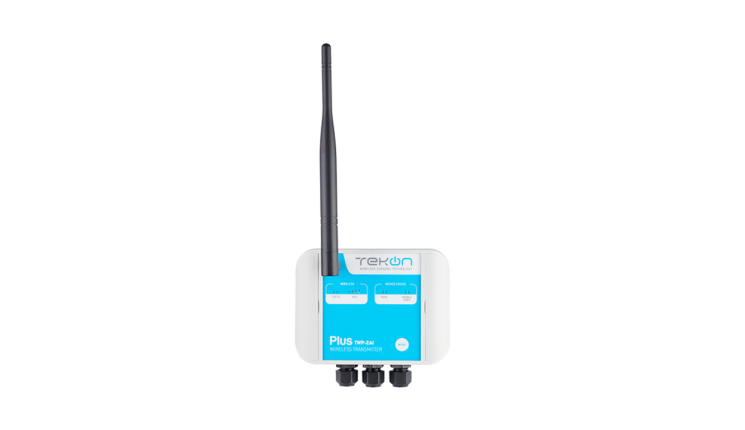

PLUS TWP-1AI - Wireless Transmitter
PLUS TWP-1AI - Wireless Transmitter - Image 2
PLUS TWP-1AI - Wireless Transmitter - Image 3
PLUS TWP-1AI - Wireless Transmitter - Image 4

PLUS TWP-1AI – Wireless Transmitter

Ref.: PA202320310 / PA202320320
  • 1 configurable analog input (0..20 mA or 0..10 V)
  • 1 configurable digital output: remote control (NPN)
  • Up to 4 Km communication distance (LoS) with 868 MHz and 915 MHz
  • 128-bit AES encryption
  • Configurable communication period
  • Simple diagnostic through visual interface
  • Easy network commissioning with site survey
  • Dual operational mode – transmitter ou transmitter or repeater
  • Simple and intuitive USB configuration via Tekon Configurator (free software)
  • IP65 protection index
Categories: ,

Description

Radio Specifications
868MHz 915MHz
Range* Up to 4 Km (LoS)
Radio Transmit Power  25 to 27 dBm  8 to 27 dBm
Radio Receiver Sensivity  -97 to -110 dBm
Frequency  868 to 869 MHz  902 to 928 MHz
Radio Channels 16 50
Encryption method AES 128 (Advanced Encryption Standard)
*Range depends on the environment and line of sight. Always verify your wireless network’s range by performing a Site Survey.
Wireless Network
Communication period 1 to 43200 seconds (configurable)
Maximum Devices (per gateway) 55
Analog Input – Current
Range 0 to 24mA
Accuracy <100uA (<0.5% FS)
Resolution 0.96uA (15bit)
Analog Input – Voltage
Range 0 to 12V DC
Resolution 0.38mV (15bit)
Accuracy <5mV (<0.05% FS)
Digital Output – Remote Output
Range 5 to 24 V DC
Maximum current protection 90 mA
Start state On / Off / Last state
Communication loss state On / Off / Last state
Power Supply
Power Supply 5 to 24V DC ± 5%
Operating Environment
Environment conditions Storage conditions
Temperature -30ºC to 80ºC
Relative Humidity N/A  ≤ 95%
